Catbot

Small Body, Big Dream

All-in-One | Voice Control | Cloud Programming

For commercial purpose and scientific research

Working Radius

600mm

Repeatability

±0.05mm

Payload

3kg

Catbot is the latest all-in-one 6-axis collaborative robot from Elephant Robotics, aiming for the perfect assistant in commercial scenarios and scientific research.The Catbot integrates the cabinet controller and the robotic arm together, successfully tackles the problem of oversize cabinet controller for the very first time. With a modular and compact body, Catbot can save you tons on maintenance costs. This versatile robotic arm features two creative functions ”Voice Control” and “Cloud Programming” , it also supports custom programming and secondary development. What's more, you can operate it through a computer, a Pad or a phone, no need to use an extra teach pendant.

All in One

Voice Control

Collaborative and Safe

Cloud Programming

All in One, Portable and Practical

Elephant Robotics creatively integrates the cabinet controller and the robotic arm together, successfully reduce the installation area. Compared to traditional cobots,the total weight of Catbot is only 18kg, making it more portable and convenient. It is well established for its flexible operations, powerful functions and plug and play. You can enjoy Catbot’s intelligence in both commercial scenarios and scientific research conveniently.

Voice Control, Super Efficient

With voice control function,you can interact with Catbot conveniently. You can ask Catbot about its condition and command it to start or stop the program by voice. Much easier and much more efficient when using Catbot.

Cloud Programming, Anytime and Anywhere

No need to use an extra teach pendant, you can operate Catbot through a computer, a Pad or a phone. Programming becomes easier. Catbot is using the operate system developed by Elephant Robotics which is user friendly and compatible——API can be integrated with any programming language, SDK supports Python, C++, Java;offline programming and extension on ROS are supported;Various function modules, processing package is constantly updated in RoboFlow…

Collaborative and Safe,
Enjoy Creation

Catbot can be equipped with various end effectors and you can quickly replace the end effector according to your need. Catbot is designed for creation and  more applications are waiting for your discovery. As for safety, Catbot can stop immediately when the slight collision is perceived based on the efficient and exact collision detection algorithm. No need to install a protective barrier.

Specifications

Repeatability
±0.05mm, ±0.02mm[lite]
Payload
3kg
Reach
600mm
Degrees of Freedom
6 axis
Operating Temperature Range
0-50℃
Typical Power Consumption
180W
Collaboration Operation
Test in accordance with: EN ISO 13849-1 PL d
EN ISO 10218-1: 2011-Clause 5.4.3
Programming Mode
Graphical programming
Weight
18kg

Axis Movement Robot Arm Working RangeJ1: ±360°, J2: ±180°, J3: ±165°, J4/J5/J6:±360°
Axis Maximum Speed
J1/J2/J3:180°/sec, J4/J5/J6:225°/sec
Typical Tool Speed
1m/sec

IP Classification
IP42
Noise
<70dB
Robot Mounting
Any angle
Dimensions Robot Base
φ150mm
Materials
Aluminium alloy, PC, Rubber
Interface and Openness
SDK(Python, C++,JAVA), API, ROS
I/O Ports
Digital Input:12, Digital Ouput:8
Tool I/O Ports
Digital Input:3, Digital Ouput:3
I/O Power Supply
24V 2A
CommunicationTCP/IP
Power SupplyDC 48V, 10.5A; DC 24V, 4.5A

working range

Catbot
working range (mm)​

Top view

Lateral view

Catbot
product details

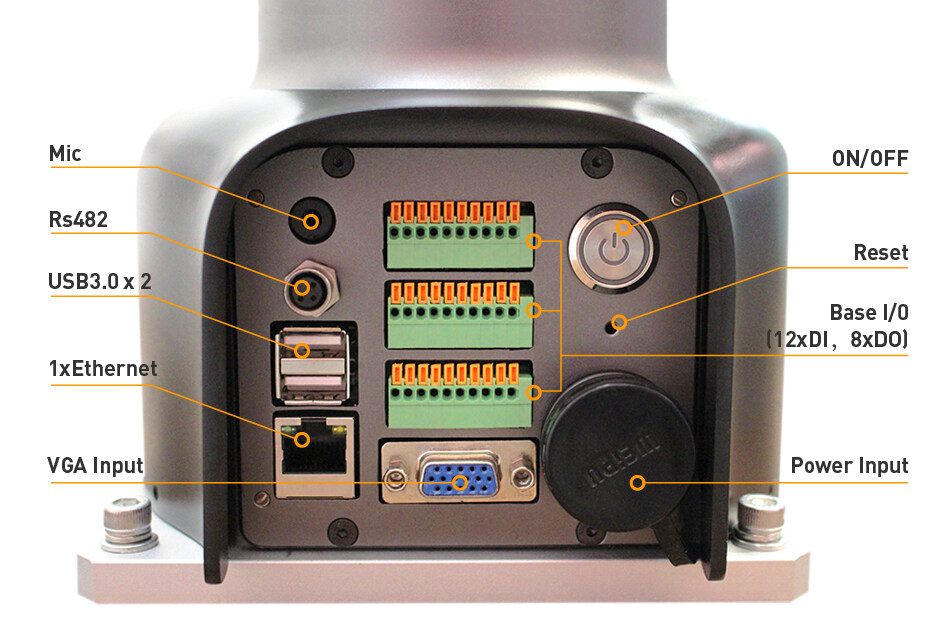

Base Detail

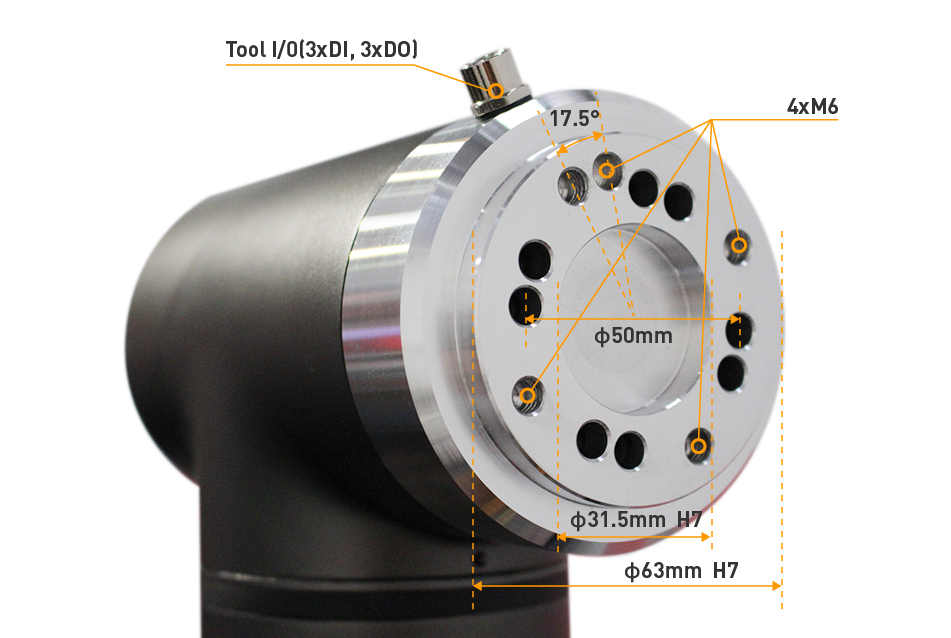

End-effector Detail

Applications

Catbot can be applied in commercial scenarios, scientific research, education scenarios, medical scenarios, showing case scenarios and etc. At present, we have received remarkable feedbacks from our customers, including Global 500 Companies, famous universities and institutions.

Smart barista to enlarge your business, can be applied in various commercial scenarios

Perfect helper in photographic studio, much more accurate and stable

Replace repetitive work, produce efficiently, create more value

Continuously print out photos, the perfect combination of artistic creation and robot

Helpful assistant in workshop, human and robot collaboration, infinite creativity

Compact All-In-One design, super fit in AGV solutions, much more flexible

Outstanding Clients

We are happy to work and share creative vision with international partners such as:

Catbot DOWNLOADS

Catbot User Manual

This manual describes the precautions for proper installation and use of the Panda series robot.

Catbot Specifications

The technical specifications parameters of the Catbot.

RoboFlow Operation and Programming Manual

This manual describes the issues to be aware of when operating and programming a Robot.
